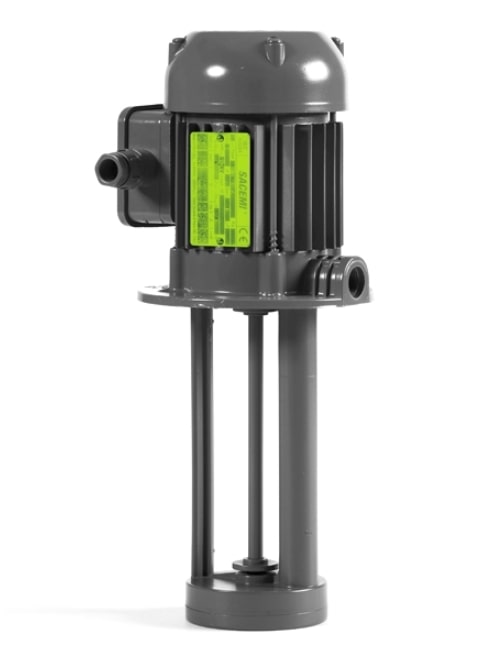

These pumps are suitable for transferring clean liquids containing impurities measuring up to 2-3mm.The hydraulic components, namely the impeller, scroll and pump body in PBT, allow the pumps to be used with water, emulsions and oily substances with a maximum viscosity of 3° Engler (21 CST).
The temperature of the liquid must not exceed 70° C.
They are usually used on:
Machine tools (milling machines – lathes –drills)
Glass-processing machines (TRI version)
Air-conditioning systems.
They should usually be installed at on a tank, with a capacity in proportion to the flow rate, at about 2 – 3 cm. from the bottom. It is important to check that the maximum level of the liquid in the tank always remains 3 – 4 cm. lower than the flange (see figure).
In cases where the liquid is particularly dirty, the user is recommended to construct the tank in compartments to allow the dirt to deposit before it is stirred up by the pump. For other usages you are advised to consult our technical office
Seal Type Shaft Diameter Secondary Seals Stock Qty Price/Pcs.
IMM 50/A_80 80 mm Viton 2 0 0.00 €
IMM 50/A_120 120 mm Viton 10 0 0.00 €
IMM 50/A_150 150 mm Viton 9 0 0.00 €
IMM 50/A_180 180 mm Viton 0 0 0.00 €
